Winters

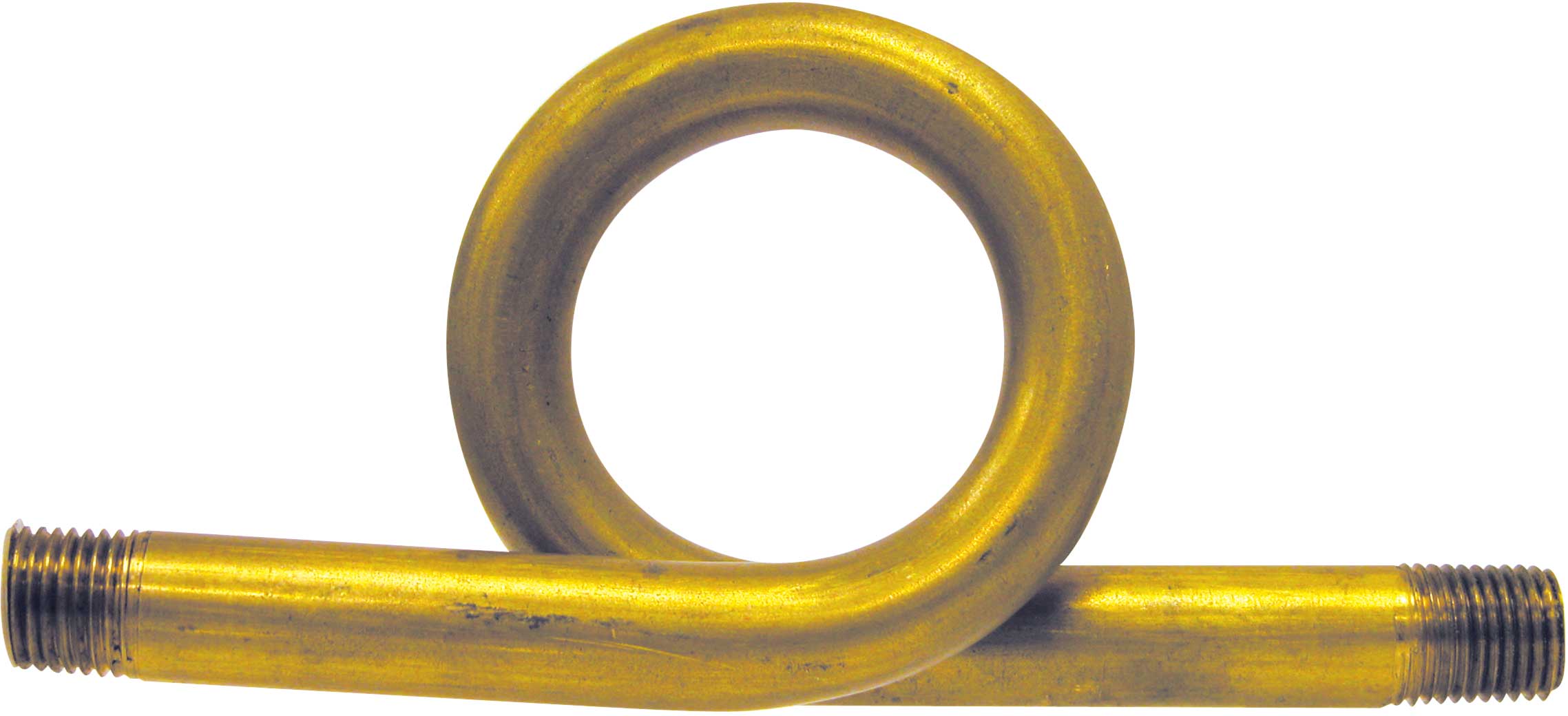

SSP Syphon  Description & Features:• On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter
• Available in brass/steel for non-corrosive applications and stainless steel for corrosive applications
• CRN registered
• 1 year warranty Applications: • Recommended for applications involving temperatures above 100°F (37°C) Download specifications and order info Custom order engineering part number
| Material | Schedule
40 steel coil welded, schedule 40 brass seamless, schedule 40, 80, 160
steel coil seamless, 304 SS seamless, or 316 SS seamless | | | | | Style | 180 degree coil | | | | | Connection | 1/4” NPT male x 1/4” NPT male or 1/2” NPT male x 1/2” NPT male | | | | Maximum Operating
Pressure | Schedule 40 welded: Steel suitable up to 175 psi at 340°F (171°C)
Schedule 40 seamless: Brass, steel, 304 SS, 316 SS suitable up to 500 psi at 680°F (360°C)
Schedule 80 seamless: Steel, 304 SS, 316 SS suitable up to 1,650 psi at 630°F (332°C)
Schedule 160 seamless: Steel, 304 SS, 316 SS suitable up to 3,200 psi at 1,100°F (548°C) |
|
