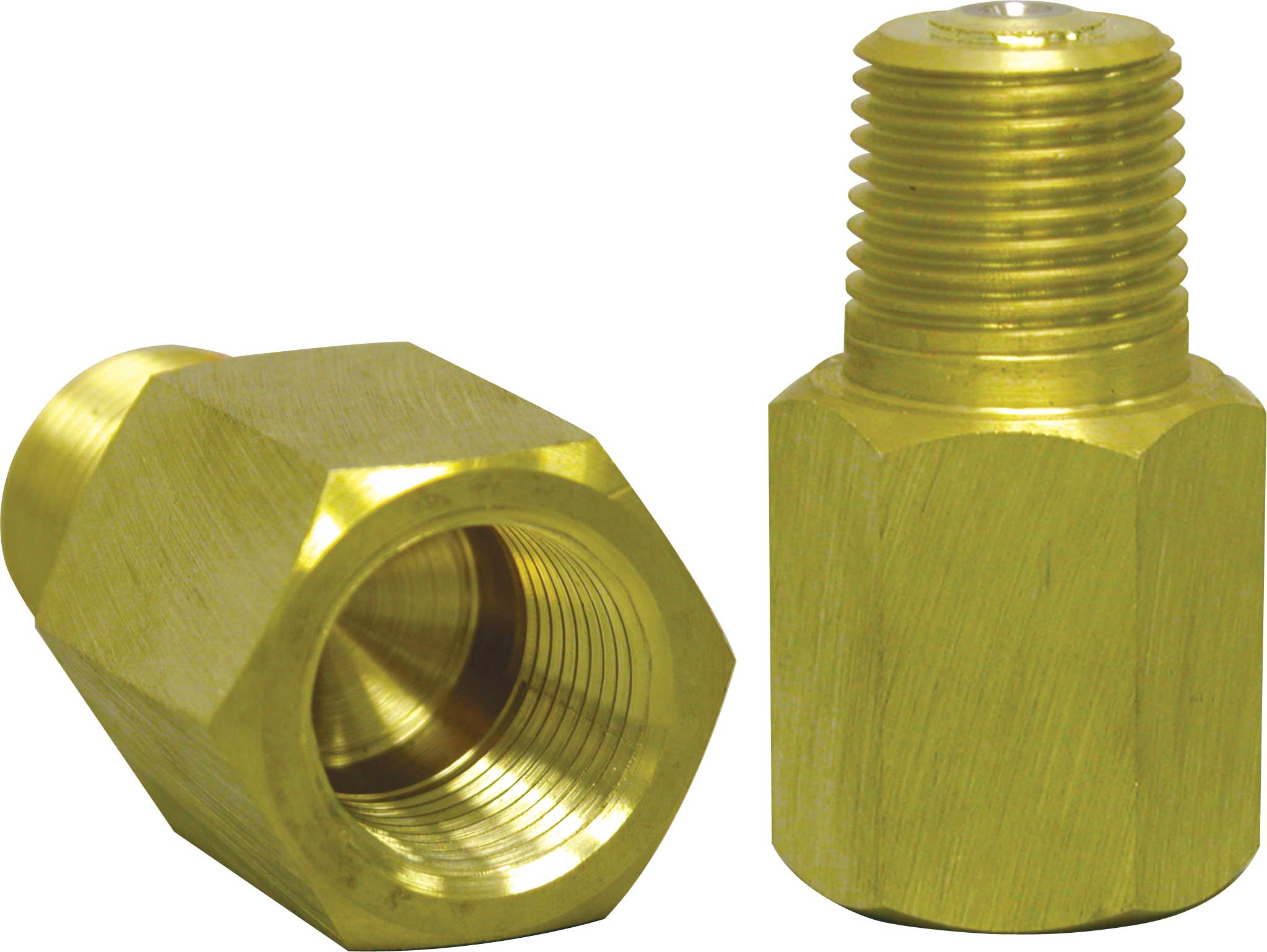

SSN Snubber and SSN-LF Lead Free Snubber Description & Features: • Incorporates a sintered,
porous 316 stainless steel snubbing element with a large surface area to
ensure long term effectiveness
• Available in the three standard viscosity classifications of heavy oil, water and air
• Brass, lead free brass or stainless steel housings can be specified depending upon pressure media and operating pressure
• ASME B40.100 compliant
• CRN registered
• 1 year warranty Applications: • To
significantly lessen the damaging effects of pulsation on gauges,
transducers, transmitters, manometers and pressure switches Download SSN specifications and order info Download SSN-LF specifications and order info Download Lead Free Certificate of Conformance Custom order engineering part number
| Specifications | SS | Brass | | Operating Temperature | -320°F to 1,500°F (-195°C to 815°C) | -65°F to 650°F (-53°C to 343°C) | | | | | | Operating Pressure | Maximum 20,000 psi (137,900 kPa) | Maximum 10,000 psi (68,950 kPa) | | | | | | Burst Pressure | 60,000 psi (413,700 kPa) | 30,000 psi (206,850 kPa) | | | | | | Housing | 316 SS | SSN: Brass
SSN-LF: Lead free brass | | | | | | Snubbing Element | Sintered, porous type 316 SS | Sintered, porous type 316 SS | | | | | | Retainer | 300 series SS | 300 series SS |
|
