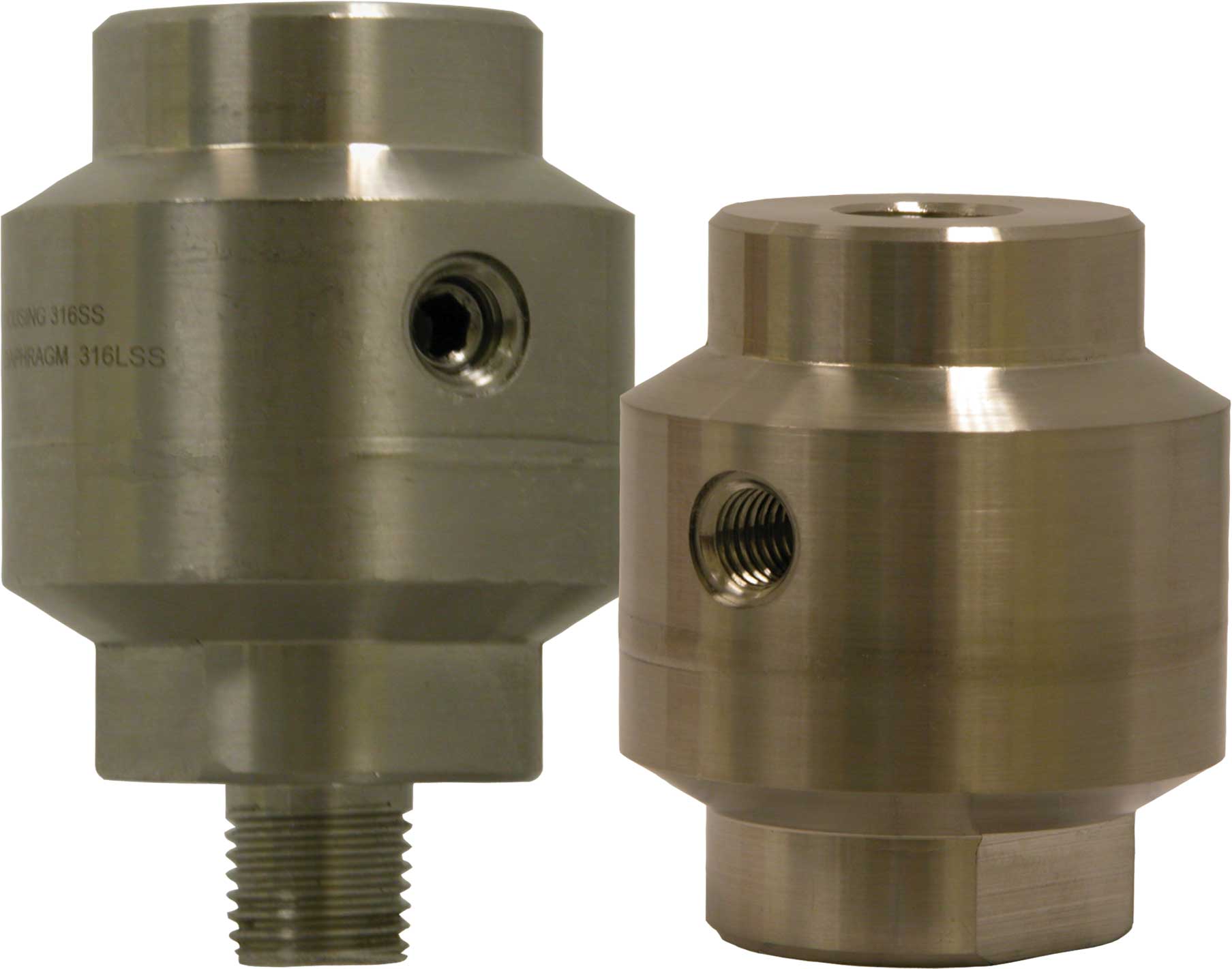

D40 #40 Diaphragm Seal Description & Features: • Compact (one piece), lightweight and economical
• ASME B40.100 compliant
• CRN registered
• 1 year warranty Applications: • Ideally suited for applications where space limitations exist
• Primarily utilized to protect gauges and transmitters from corrosive media
• Utilized in many OEM applications
Download specifications and order info Custom order engineering part number
| Housing | AISI 316 SS | | | | | Diaphragm | AISI 316L SS, welded | | | | | Minimum Operating Pressure | 15 psi | | | | | Maximum Operating Pressure | 1,000 psi (6,900 kPa) | | | | | Gauge Connection | 1/4”, 1/2” NPT female | | | | | Process Connection | 1/4”, 1/2” NPT female or male | | | | | Process Temperature | -49°F to 302°F (-45°C to 150°C) |
|
