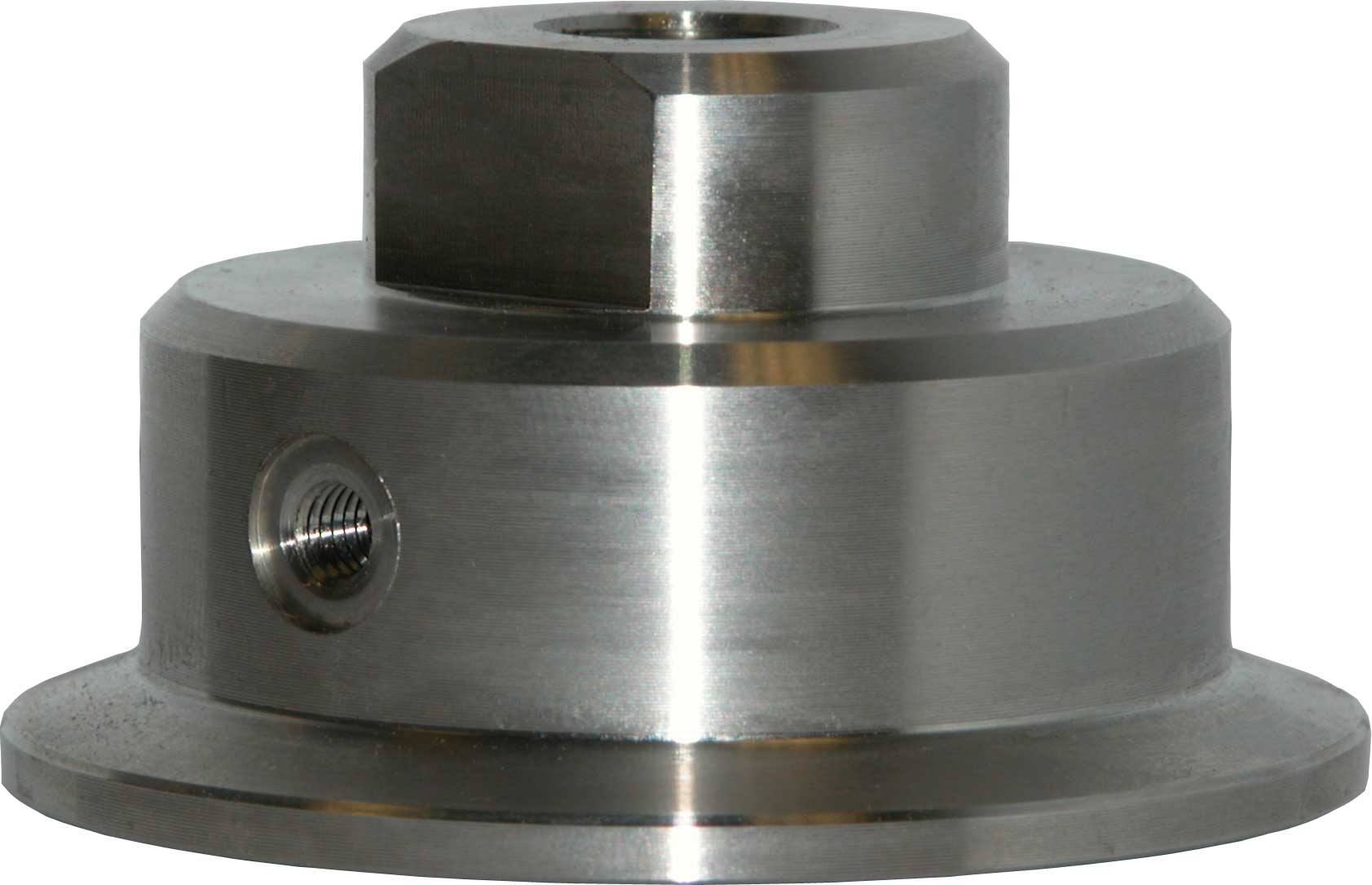

D20 #20 Diaphragm Seal Description & Features: • Meets the requirements of dairy, food, beverage, chemical and pharmaceutical industries
• ASME B40.100 compliant
• CRN registered
• 3A approved
• 1 year warranty Applications: • D20 may be attached to any Winters all SS gauge for sanitary installations.
Download specifications and order info Custom order engineering part number
| Housing | AISI 316 SS | | | | | Diaphragm | AISI 316L SS, welded | | | | | Minimum Operating Pressure | 30 psi (200 kPa) | | | | | Maximum Operating Pressure | 600 psi (4,140 kPa) | | | | | Gauge Connection | 1/4” NPT female | | | | | Process Connection | 1.5” (40mm) and 2” (50mm)
Tri-Clamp® fitting standard | | | | | Process Temperature | -4°F to 248°F (-20°C to 120°C) | | | | | Surface Finish | 8 Ra |
|
