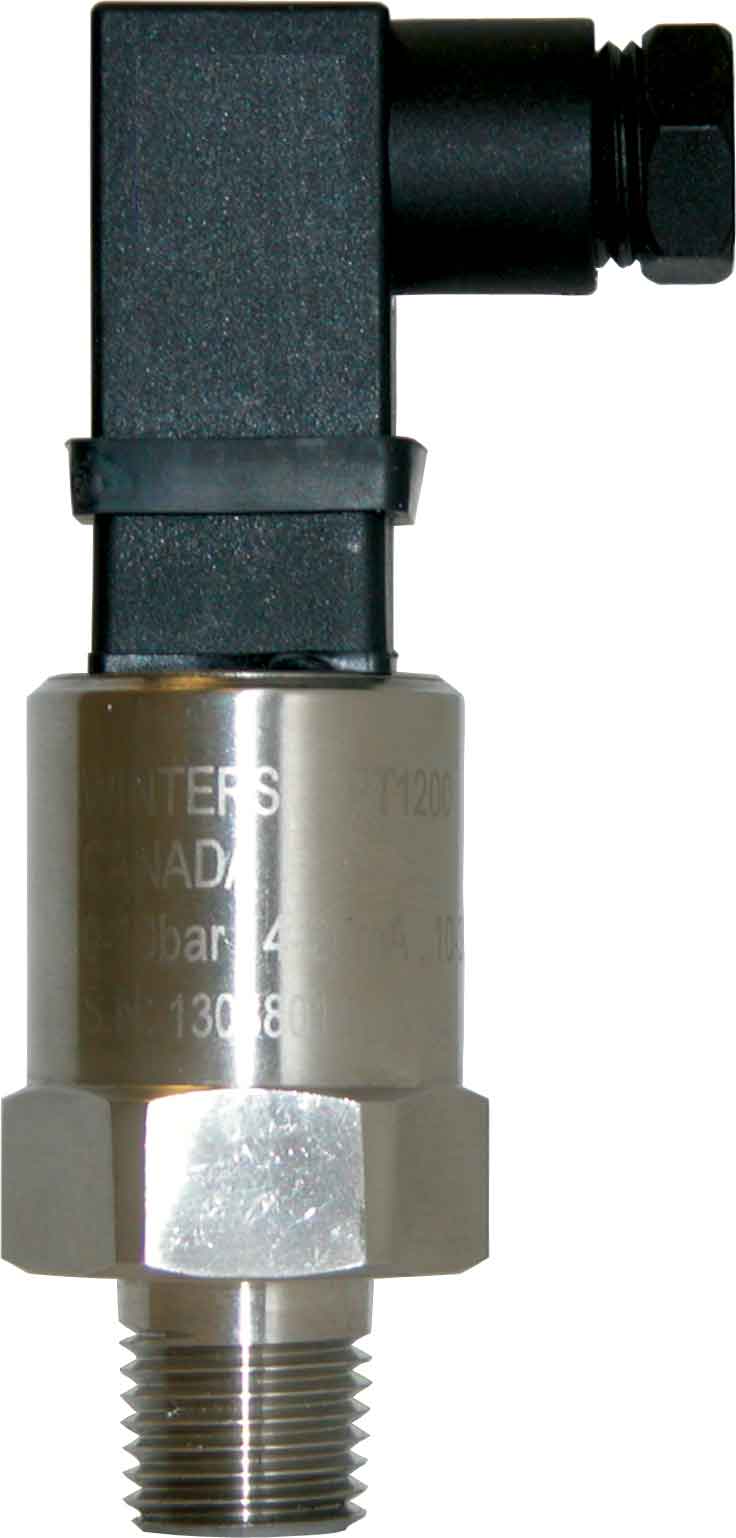

Winters LE1 High-Volume OEM Transmitter

Description & Features:

• Developed for high-volume OEM applications.
• Compact stainless steel construction with ceramic sensor
• Available ranges include in/Hg up to 5,000 psi
• Wide range of mechanical and electrical connections
• ±0.5% accuracy
IP67 enclosure rating
• CE approved
• 1 year warranty

Applications:

• Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC

Download specifications and order info


Output SignalStandard 2-wire: 4-20 mA / Vs = 12-30 Vdc
Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc
Accuracy±0.5% FSO / ±0.25% BFSL
Response Time
<10 msec
Measuring Rate 1 kHz
Insulation>100mΩ @ 50v
Permissible Temperatures
Operating: -40°F to 212°F (-40°C to 100°C)
Compensating: 14°F to 176°F (-10°C to 80°C)
Storage: -58°F to 257°F (-50°C to 125°C)

Pressure Port / Housing
304 SS

Wetted Parts

Seals: FKM (Viton® standard).

Diaphragm: Ceramic


Current Consumption2-wire: 25 mA max
3-wire voltage: 5 mA (short-circuit current 20 mA)

EMC
EMI: EN50087-1/-2
EMS: EN50082-2

Approval
CE



Sort By:
1
WINTERS LE10030
WINTERS LE10030 - 30"/0/30 PSI TRANSMITTER
Price: $99.00

30"/0/30 PSI TRANSMITTER more info
WINTERS LE10060
WINTERS LE10060 - 30"/0/60 PSI TRANSMITTER
Price: $99.00

30"/0/60 PSI TRANSMITTER more info
WINTERS LE10100
WINTERS LE10100 - 30"/0/100 PSI TRANSMITTER
Price: $99.00

30"/0/100 PSI TRANSMITTER more info
WINTERS LE10150
WINTERS LE10150 - 30"/0/150 PSI TRANSMITTER
Price: $99.00

30"/0/150 PSI TRANSMITTER more info
WINTERS LE1100
WINTERS LE1100 - 0/100 PSI TRANSMITTER
Price: $99.00

0/100 PSI TRANSMITTER more info
WINTERS LE11000
WINTERS LE11000 - 0/1,000 PSI TRANSMITTER
Price: $99.00

0/1,000 PSI TRANSMITTER more info
WINTERS LE115
WINTERS LE115 - 0/15 PSI TRANSMITTER
Price: $99.00

0/15 PSI TRANSMITTER more info
WINTERS LE1150
WINTERS LE1150 - 0/150 PSI TRANSMITTER
Price: $99.00

0/150 PSI TRANSMITTER more info
WINTERS LE1200
WINTERS LE1200 - 0/200 PSI TRANSMITTER
Price: $99.00

0/200 PSI TRANSMITTER more info
WINTERS LE12000
WINTERS LE12000 - 0/2,000 PSI TRANSMITTER
Price: $99.00

0/2,000 PSI TRANSMITTER more info
WINTERS LE125
WINTERS LE125 - 0/25 PSI TRANSMITTER
Price: $99.00

0/25 PSI TRANSMITTER more info
WINTERS LE1300
WINTERS LE1300 - 0/300 PSI TRANSMITTER
Price: $99.00

0/300 PSI TRANSMITTER more info
WINTERS LE13000
WINTERS LE13000 - 0/3,000 PSI TRANSMITTER
Price: $99.00

0/3,000 PSI TRANSMITTER more info
WINTERS LE130VC
WINTERS LE130VC - 30" Hg VAC TRANSMITTER
Price: $99.00

30" Hg VAC TRANSMITTER more info
WINTERS LE150
WINTERS LE150 - 0/50 PSI TRANSMITTER
Price: $99.00

0/50 PSI TRANSMITTER more info
WINTERS LE1500
WINTERS LE1500 - 0/500 PSI TRANSMITTER
Price: $99.00

0/500 PSI TRANSMITTER more info
WINTERS LE15000
WINTERS LE15000 - 0/5,000 PSI TRANSMITTER
Price: $99.00

0/5,000 PSI TRANSMITTER more info
WINTERS LE160
WINTERS LE160 - 0/60 PSI TRANSMITTER
Price: $99.00

0/60 PSI TRANSMITTER more info
