Winters

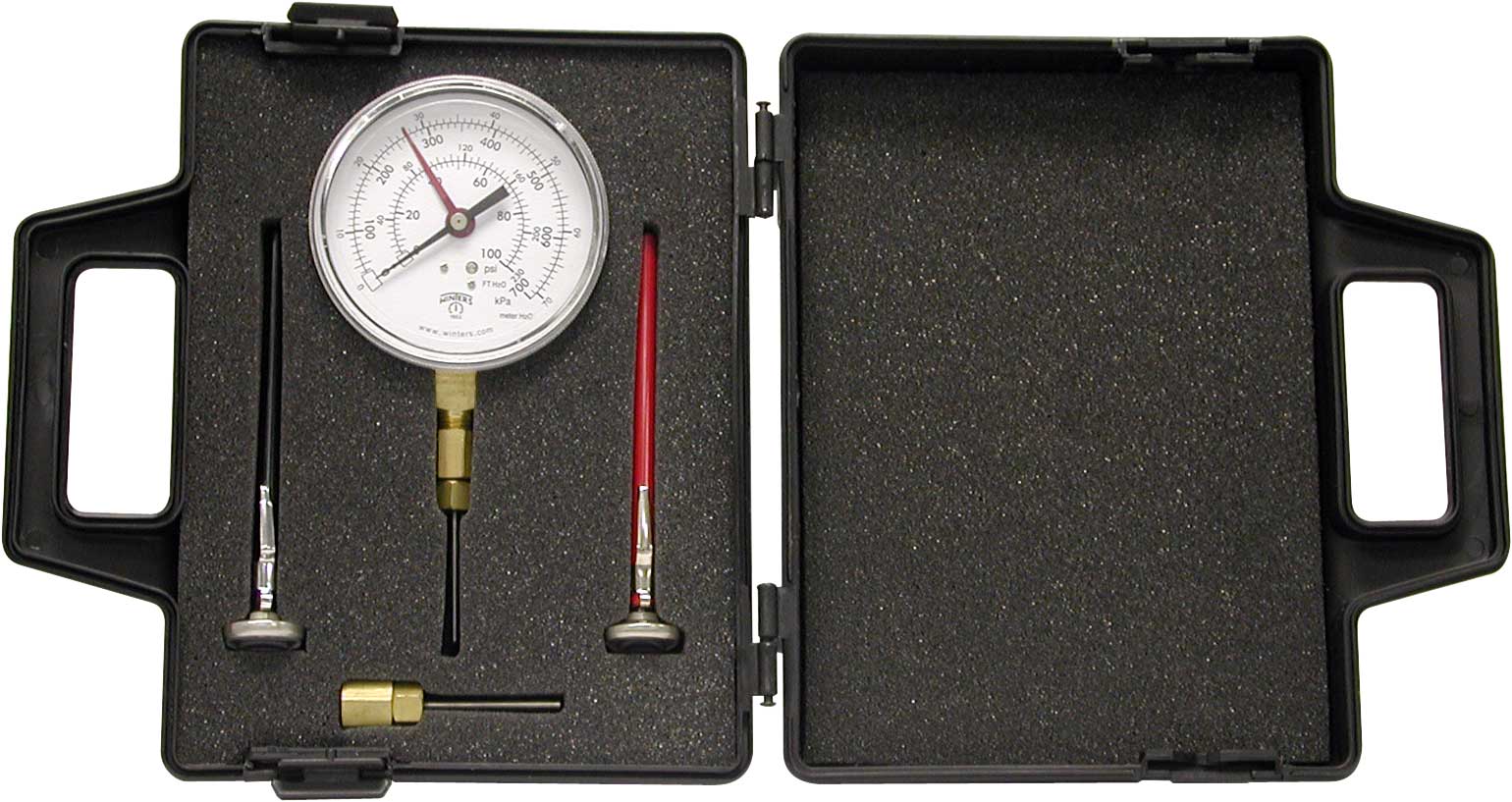

PTK Pressure and Temperature Kit Description & Features: • A portable kit with durable carrying case to protect the test instruments between uses and test locations
• Includes two thermometers for high or low temperature tests
• Pressure gauge includes secondary adjustable set pointer to assist the operator in pressure test evaluations
• Hardened stainless steel gauge adaptor probe for test plug insertion
• Eliminates the need for costly, permanently installed pressure gauges or recording devices
• Multi-scale (psi/ft H2O/kPa/meters H2O) pressure gauge dial face for acceptance in a variety of applications
• 5 year warranty Applications:  • To determine pressure or temperature levels where test plugs are installed in the process
• Used at start-up or periodic testing of pipelines or pressure vessels
•
Chilled and hot water systems, refrigeration and hydronics,
pneumatics, prototype equipment, new building construction, building
maintenance Download specifications and order info

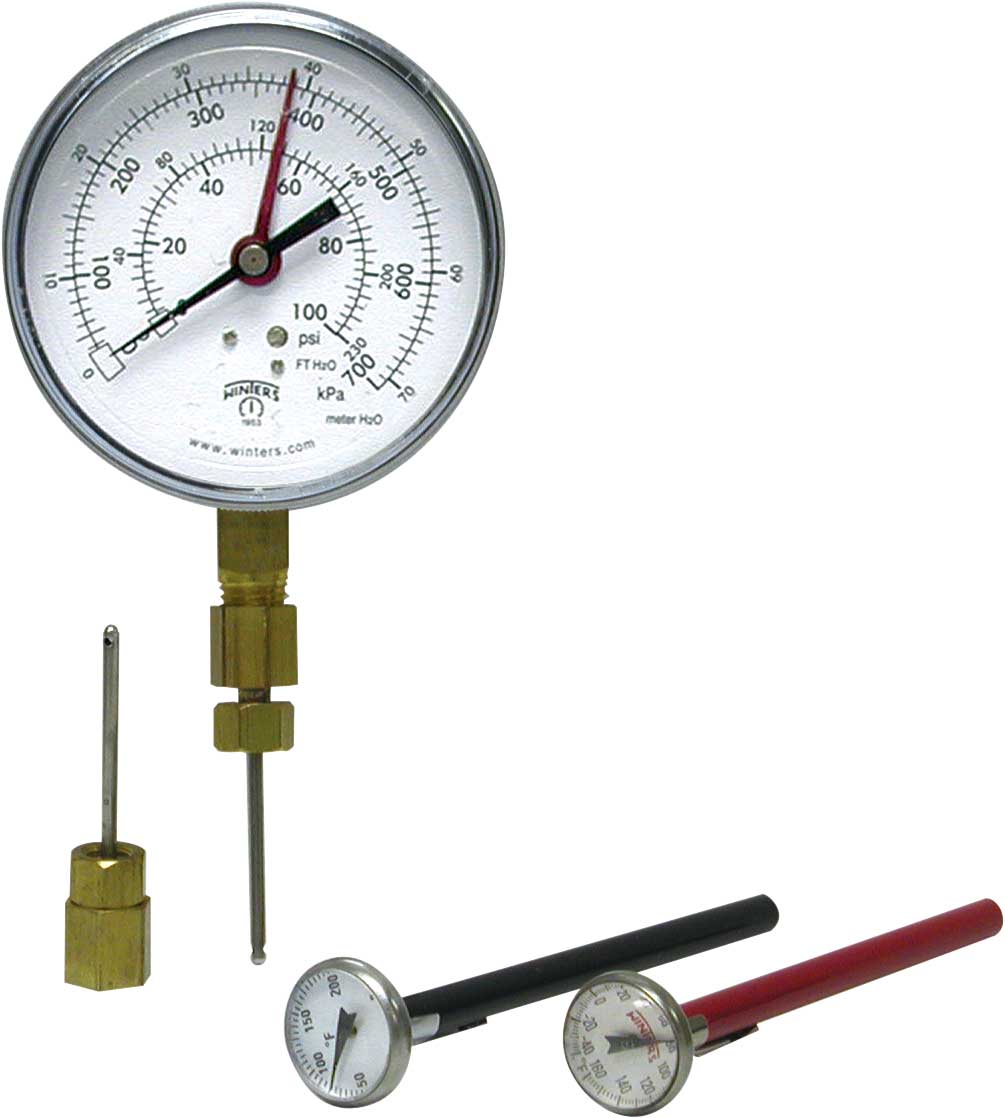

| Case | Black plastic with custom cut foam inserts for parts | | | | | Pressure Gauge | 3.5” (90mm) dial, brass wetted, 0-100 psi/Ft H2O/kPa/meters H2O, 1/4” NPT bottom with attached gauge adaptor
±2-1-2% ANSI/ASME Grade A, Red stationary pointer | | | | | Gauge Adaptors | 1.75” x 0.125” SS probe with 1/4” FNPT swivel gauge fitting | | | | | Thermometer 1 | 1” (25mm) dial, 5” x 0.142” (127mm x 3.6mm) stem, includes plastic sheath, ±1% accuracy
Range: 0°F to 250°F (-17°C to 121°C) | | | | | Thermometer 2 | 1” (25mm) dial, 5” x 0.142” (127mm x 3.6mm) stem, includes plastic sheath, ±1% accuracy
Range: -40°F to 160°F (-40°C to 71°C) |
|
