Winters

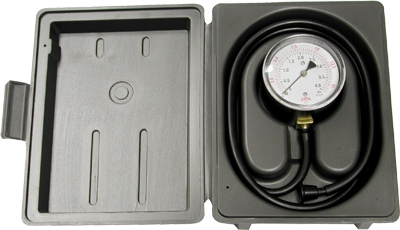

PLT Low Pressure Test Kit Description & Features: • Low pressure gauge built into protective case for ease in use and durability
• Sensitive diaphragm gauge available in 3 pressure ranges
• Re-zero with external recalibration screw
• Easier to use than a manometer
• Plastic blow molded case for added durability
• Sleek design featuring secure latch
• Facilitates safe handling
• ASME B40.100 compliant
• CRN registered
• 5 year warranty Applications: • For checking low pressure (i.e. on natural gas equipment) Download specifications and order info
| Specifications - Gauge | | Dial | 2.5" (63mm), white aluminum dial with red and black markings
| | | | | Case/Ring | Steel, painted black | | | | | Lens | Polycarbonate | | | | | Connection | Brass hose barb (1/4”) | | | | | Diaphragm Element | Phosphor bronze | | | | | Movement | Engineering plastic upper and lower plate with brass pinion and sector, with zero adjustment | | | | | Ambient Temperature | -40°F to 150°F (-40°C to 65°C) | | | | | Accuracy | ±3-2-3% ANSI/ASME Grade B | | | | | Enclosure Rating | IP52 | | | | Specifications - Case
| | Tube Nipple | Rubber: 0.256” (6.5mm)
ID x 0.472” (12mm)
OD x 1.339” (34mm) L | | | | | Case Material | Plastic blow molded: 5.75” x 7.56” (146mm x 192mm) | | | | | Hose Tube | Rubber: 3’ (91cm) in length; 0.197” (5mm) ID x 0.315” (8mm) OD |
| PLT LOW PRESSURE
TEST KIT |
| DIAL SIZE |
2.5" |
| PRESSURE
RANGE |
CODE |
| 0/15" WATER/OZ/IN2 |
PLT15 |
| 0/15"
WATER/OZ/IN2 |
PLT35 |
| 0/15"
WATER/OZ/IN2 |
PLT100 |
|
