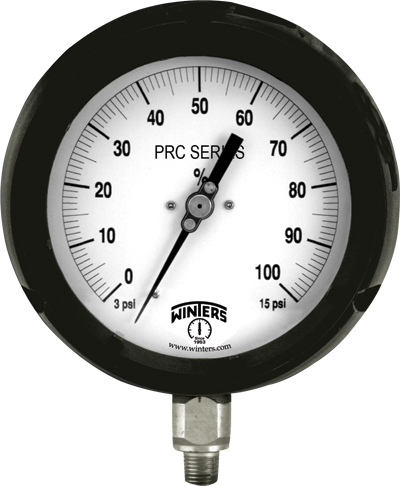

PRC Receiver Pressure Gauge Description & Features:• High quality gauge designed to work with a pneumatic transmitter or controller
• Stainless steel or brass wetted parts
• 3-15 psi with a variety of receiver ranges
• 316 stainless steel or brass wetted parts
• ASME B40.100 compliant
• CRN registered
• 5 year warranty Applications: • Reliable indication of changes in pressure, temperature, flow, level, or other measured variables
Download specifications and order info Custom order engineering part number | | Stainless Steel Internals
| Brass Internals
| | Dial | 4.5” (115mm) white aluminum with black and red markings | 4.5” (115mm) white aluminum with black and red markings | | | | | | Case | Black phenolic, with safety blowout back, solid front, integral back flange | Black phenolic, with safety blowout back, solid front, integral back flange | | | | | | Solid Wall | Phenolic | Phenolic | | | | | | Lens | Polycarbonate | Polycarbonate | | | | | | Ring | Phenolic | Phenolic | | | | | | Pointer | Aluminum, anodized black, micrometer adjustable | Aluminum, anodized black, micrometer adjustable | | | | | | Socket | 316L SS | OT 58 brass | | | | | | Connection | 1/4” NPT or 1/2” NPT standard, bottom | 1/4” NPT or 1/2” NPT standard, bottom | | | | | | Bourdon Tube | 316L SS, drawn seamless | Phosphor bronze | | | | | | Movement | 304 SS with over/under stops | 304 SS with over/under stops | | | | | | Gasket Materials | Silicone | Silicone | | | | | | Welding | TIG | Silver alloy | | | | | | Over-pressure Limit | 25% of full scale value | 25% of full scale value | | | | | | Working Pressure | Maximum 75% of full scale value | Maximum 75% of full scale value | | | | | | Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) dry /
-4°F to 150°F (-20°C to 65°C) glycerin-filled | -40°F to 200°F (-40°C to 93°C) dry /
-4°F to 150°F (-20°C to 65°C) glycerin-filled | | | | | | Accuracy | ±0.5% ANSI/ASME Grade 2A | ±0.5% ANSI/ASME Grade 2A | | | | | | Enclosure Rating | IP65 | IP65 |
Option Suffix:
6HCS - 6" Hinged case solid front (back connect only)
FMR - Front mounting ring
G - Glycerin filled (bottom connect only)
HCSF - Hinged case solid front (back connect only)
SG-45 - Safety Glass 4.5"
|
