Polyester Modular Enclosures - NEMA 4X
PJU Series - Hinged Screw Cover, Solid and Window Door
Application
- Designed for use as instrument enclosures, electric,
hydraulic or pneumatic control housings, electrical junction boxes or
terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Standards
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- IEC 60529, IP66
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Cover fastened with captive stainless steel screws in threaded brass inserts.
- Enclosure available with clear Polycarbonate cover to 16" x 20".
- Molded hinge with stainless steel pin.
- Captive oil resistant gasket provides a positive seal.
- Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
Accessories
- PJ / PJU swing panel
- Inner panels
- Terminal kit assemblies

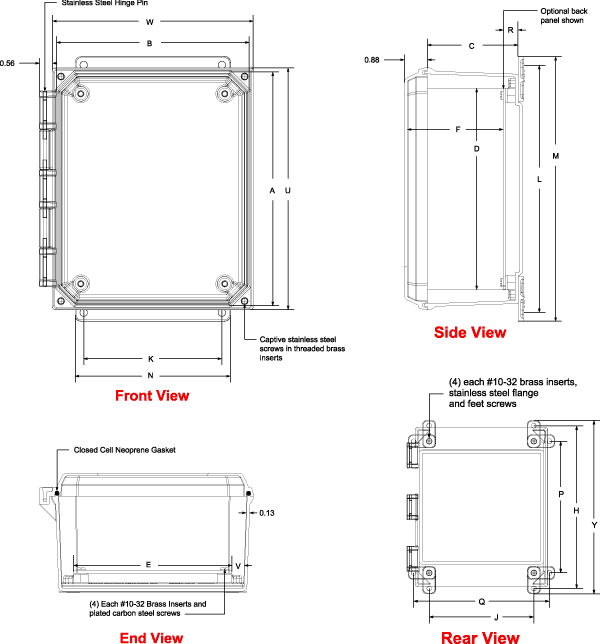

| Hinged
Screw |
Hinged Screw |
Overall
Dimensions |
Panel Size |
|
Center |
Flange
Mounting Centers |
|
| Cover
Flange |
Cover Feet |
| Part No. |
Part No. |
A |
B |
C |
D |
E |
F |
S |
Z |
L |
K |
M |
| PJU664HF |
PJU664H |
6.05 |
6.27 |
4.13 |
4.88 |
4.88 |
4.11 |
4.25 |
4.25 |
6.88 / 6.75 |
4.1 |
7.62 |
| PJU864HF |
PJU864H |
8.05 |
6.27 |
4.13 |
6.75 |
4.88 |
4.11 |
6.25 |
4.25 |
8.88 / 8.75 |
4 |
9.62 |
| PJU1084HF |
PJU1084H |
10.05 |
8.27 |
4.13 |
8.75 |
6.88 |
4.11 |
10.3 |
6.25 |
10.75 |
6 |
11.5 |
| PJU12106HF |
PJU12106H |
12.05 |
10.3 |
6.13 |
10.8 |
8.88 |
6.11 |
10.3 |
8.25 |
12.75 |
8 |
13.5 |
| PJU14126HF |
PJU14126H |
14.05 |
12.3 |
6.13 |
12.8 |
10.9 |
6.11 |
12.3 |
10.3 |
14.75 / 14.62 |
10 |
15.37 |
| PJU16148HF |
PJU16148H |
16.05 |
14.3 |
8.13 |
14.8 |
12.9 |
8.11 |
14.3 |
12.3 |
16.75 |
12 |
17.5 |
| PJU181610HF |
PJU181610H |
18.3 |
16.5 |
10.1 |
16.9 |
14.9 |
10.1 |
16.3 |
14.3 |
18.88 / 18.76 |
12 |
20.12 |
| PJU201610HF |
PJU201610H |
20.5 |
16.3 |
10.1 |
18.4 |
14.4 |
10.1 |
17.8 |
13.8 |
21.25 |
10 |
21.5 |
|
