C-Box Screw Cover Wwith Knockouts

NEMA 1

Application

Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

UL-50 Type 1
cUL Type 1
Complies with:
- NEMA Type 1
- IEC 60529, IP29

Construction

Formed and spot welded from 16 or 14 gauge steel depending on size.
Flat steel covers fastened with plated steel screws.
Keyhole slots permit cover to be lifted off without removing screws entirely.

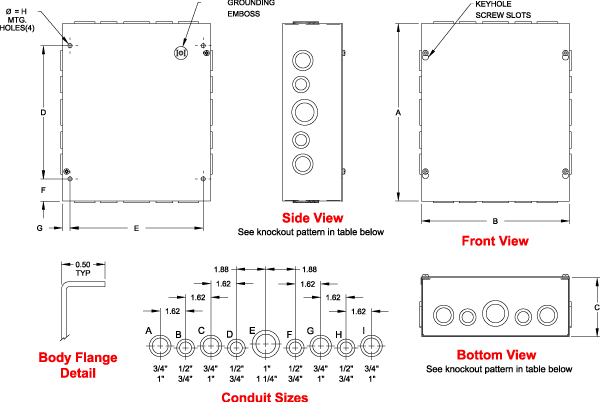

Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
Through holes in back for wall mounting.
Grounding location embossed in body.

Finish

Enclosure and cover are finished in ANSI 61 gray powder coating.

Part No.	Overall							Knockout Pattern Sides		Knockout Pattern	Ship
	Dimensions									Top & Bottom	Wt.
	A	B	C	D	E	F	G		H		lbs.
CSKO443	4	4	3	2	3	0.88	0.5	B - C	0.28	A - B	2
CSKO663	6	6	3	3	5	1.5	0.5	B-C-D	0.28	B-C-D	3
CSKO863	8	6	3	5	5	1.5	0.5	F-G-H-I	0.28	B-C-D	3
CSKO16143	16	14	3	13	13	1.5	0.5	B-C-D-E-F-G-H	0.28	B-C-D-E-F-G-H	12
CSKO18143	18	14	3	15	13	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	B-C-D-E-F-G-H	13
CSKO20143	20	14	3	17	13	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	B-C-D-E-F-G-H	13
CSKO444	4	4	4	2	3	0.88	0.5	B - C	0.28	A - B	2
CSKO644	6	4	4	3	3	1.5	0.5	B-C-D	0.28	A - B	3
CSKO664	6	6	4	3	5	1.5	0.5	B-C-D	0.28	B-C-D	3
CSKO864	8	6	4	5	5	1.5	0.5	F-G-H-I	0.28	B-C-D	5
CSKO884	8	8	4	5	7	1.5	0.5	F-G-H-I	0.28	F-G-H-I	5
CSKO1084	10	8	4	7	7	1.5	0.5	F-G-H-I	0.28	F-G-H-I	6
CSKO10104	10	10	4	7	9	1.5	0.5	F-G-H-I	0.28	C-D-E-F-G	6
CSKO1284	12	8	4	9	7	1.5	0.5	C-D-E-F-G	0.28	F-G-H-I	7
CSKO12104	12	10	4	9	9	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	8
CSKO12124	12	12	4	9	11	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	9
CSKO16124	16	12	4	13	11	1.5	0.5	B-C-D-E-F-G-H	0.28	C-D-E-F-G	12
CSKO18124	18	12	4	15	11	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	C-D-E-F-G	12
CSKO18184	18	18	4	15	17	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	A-B-C-D-E-F-G-H-I	16
CSKO24244	24	24	4	21	23	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	33
CSKO666	6	6	6	3	5	1.5	0.5	B-C-D	0.28	B-C-D	4
CSKO886	8	8	6	5	7	1.5	0.5	F-G-H-I	0.28	F-G-H-I	6
CSKO1086	10	8	6	7	7	1.5	0.5	F-G-H-I	0.28	F-G-H-I	7
CSKO10106	10	10	6	7	9	1.5	0.5	F-G-H-I	0.28	C-D-E-F-G	8
CSKO12106	12	10	6	9	9	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	9
CSKO12126	12	12	6	9	11	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	10
CSKO16126	16	12	6	13	11	1.5	0.5	B-C-D-E-F-G-H	0.28	C-D-E-F-G	13
CSKO16166	16	16	6	13	15	1.5	0.5	B-C-D-E-F-G-H	0.28	B-C-D-E-F-G-H	16
CSKO18126	18	12	6	15	11	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	C-D-E-F-G	14
CSKO18186	18	18	6	15	17	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	A-B-C-D-E-F-G-H-I	19
CSKO24186	24	18	6	21	17	1.5	0.5	A-B-C-D-E-F-G-H-I	0.28	A-B-C-D-E-F-G-H-I	26
CSKO24246	24	24	6	21	22.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	37
CSKO30246	30	24	6	27	22.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	45
CSKO36246	36	24	6	33	22.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	57
CSKO12128	12	12	8	9	11	1.5	0.5	C-D-E-F-G	0.28	C-D-E-F-G	12
CSKO16168	16	16	8	13	15	1.5	0.5	B-C-D-E-F-G-H	0.28	B-C-D-E-F-G-H	20
CSKO24248	24	24	8	21	22.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	44
CSKO202010	20	20	10	17	19	1.5	0.75	A-B-C-D-E-F-G-H-I	0.28	A-B-C-D-E-F-G-H-I	37
CSKO242410	24	24	10	21	22.5	1.5	0.5	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	52
CSKO302010	30	20	10	27	18.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	59
CSKO362410	36	24	10	33	22.5	1.5	0.75	A-B-C-D-E-F-G-H-I	0.44	A-B-C-D-E-F-G-H-I	75
