AMP-TRAP®-Form 101

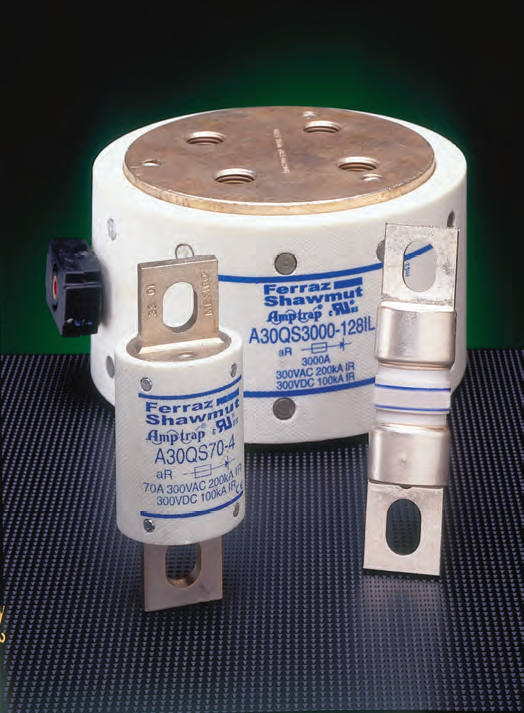

A30QS Series / 300 V

Semiconductor Protection Fuses

A30QS Amp-trap® Semiconductor Protection fuses areintended for the protection of Power Semiconductorssuch as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS isrecommended fornew applications providing solutions for your criticalprotection needs at 300V and less semiconductors.

Features

Low I²t minimizes damage to protected component on short circuit
Controlled arc voltage reduces stress to circuit
components during fuse clearing
Choice of mounting types helps in equipment design

Highlights

Fast Acting
Current Limiting
Indicator options available
Superior DC capabilities

Ratings

AC: 300VAC, 1A to 4500A, 200kA I.R.
AC: 300VDC, 1A to 4500A, 100kA I.R.

Approvals

UL Recognized Component
Guide JFHR2
Some Ratings RoHS Compliant

Applications

Protection of AC/DC drives, UPS and other equipment of 300 volts or less

Please call 1-877-934-3585 for price and availability!
