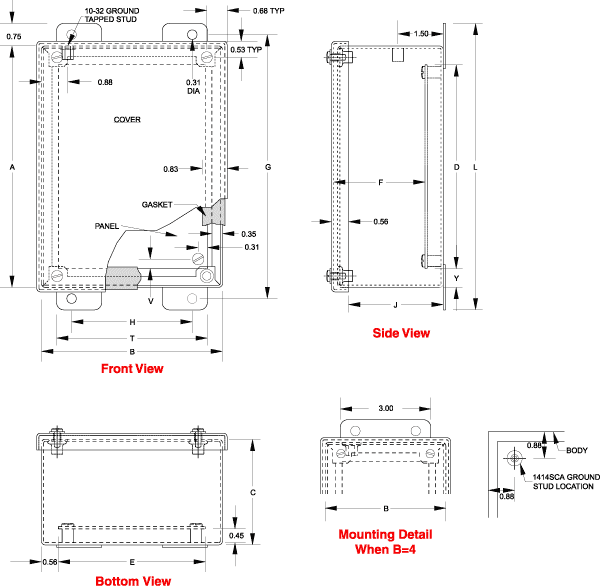

1414 SC Series Enclosures - NEMA 12, 13
Lift-Off, Screw Cover

Application
- Designed for use as instrument enclosures, electric,
hydraulic or pneumatic control housings, electrical junction boxes or
terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54
Construction
- Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Cover is secured with captive, plated steel screws, threaded into sealed wells.
- Oil resistant gaskets are permanently secured.
- Models larger than 4" x 4" include a removable 14 gauge inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
Accessories
- Additional Inner Panels
- Breather Kits
- Door Clamping Hardware
- Filter Fans
- Heaters
- Louvered Ventilating Plates
- Swing Panel
- Terminal Kit Assemblies
- Thermostats
| Part
No. |
|
Panel Size |
|
Centers |
|
Cover |
|
Ship Wt. |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
T |
Dimensions |
V |
Y |
(lbs) |
| 1414SCA¹ |
4 |
4 |
3 |
- |
- |
- |
4.75 |
2 |
2.64 |
5.5 |
3 |
4.31 |
4.31 |
- |
- |
2 |
| 1414SCC¹ |
6 |
4 |
3 |
4.87 |
2.87 |
2.51 |
6.75 |
2 |
2.64 |
7.5 |
3 |
6.31 |
4.31 |
0.31 |
0.56 |
3 |
| 1414SCG |
8 |
6 |
3.5 |
6.75 |
4.87 |
3.01 |
8.75 |
4 |
3.14 |
9.5 |
5 |
8.31 |
6.31 |
0.25 |
0.63 |
6 |
| 1414SCE |
6 |
6 |
4 |
4.87 |
4.87 |
3.51 |
6.75 |
4 |
3.64 |
7.5 |
5 |
6.31 |
6.31 |
0.31 |
0.56 |
5 |
| 1414SCI |
10 |
8 |
4 |
8.75 |
6.87 |
3.51 |
10.75 |
6 |
3.64 |
11.5 |
7 |
10.31 |
8.31 |
0.25 |
0.63 |
10 |
| 1414SCK |
12 |
10 |
5 |
10.75 |
8.87 |
4.51 |
12.75 |
8 |
4.64 |
13.5 |
9 |
12.31 |
10.31 |
0.25 |
0.63 |
14 |
| 1414SCM6 |
14 |
12 |
6 |
12.75 |
10.87 |
5.51 |
14.75 |
10 |
5.64 |
15.5 |
11 |
14.31 |
12.31 |
0.25 |
0.63 |
19 |
| 1414SCO6 |
16 |
14 |
6 |
14.75 |
12.87 |
5.51 |
16.75 |
12 |
5.64 |
17.5 |
13 |
16.31 |
14.31 |
0.25 |
0.63 |
24 |
| 1414SCM8 |
14 |
12 |
8 |
12.75 |
10.87 |
7.51 |
14.75 |
10 |
7.64 |
15.5 |
11 |
14.31 |
12.31 |
0.25 |
0.63 |
22 |
| 1414SCO10 |
16 |
14 |
10 |
14.75 |
12.87 |
9.51 |
16.75 |
12 |
9.64 |
17.5 |
13 |
16.31 |
14.31 |
0.25 |
0.63 |
29 |
|
|
|
